To operate a refinery boiler at optimum efficiency while also maintaining a safe operating environment, critical flow measurements such as combustion air and fuel gas recirculation are commonly used.
These applications can be challenging due to the large size of the ducts and limited amount of straight run.
Determining the location of the MT100 Flow Meter’s multiple air/gas flow sensors in boiler piping and duct systems is essential for proper measurement, but it is also challenging when considering access and clearances for installation and maintenance of the instruments.

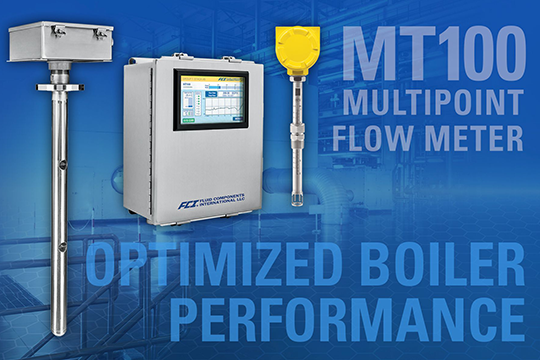

The MT100 offers both mast type and single-point flow elements in order to optimise the flow measurement solution.
FCI’s versatile MT100 Series Multipoint Mass Flow Meters feature proven precision, repeatable and compact thermal dispersion flow sensor technology.
They accurately monitor and report the flow rate and/or the totalized flow of air and fuel gases in order to achieve the precise combustion ratio necessary for optimum boiler performance that produces the steam for cracking and other high-heat refinery and other petrochemical production processes.
MT100 Flow Meters combine state-of-the-art electronics technology with application-specific precision multipoint flow sensors in a rugged package designed for demanding operating environments.
These meters provide temperature-compensated direct mass flow measurement of air and fuel gases.
The rugged MT100 Multipoint Flow Meters with their temperature-compensated sensors measure air, natural gas, process gases or flue waste gasses operating at up to 454°C.
They measure flow rates over a wide range from 0,07 to 305 NMPS with 100:1 turndown and with excellent accuracy of ± 1.75% of reading, ± 0.5% of full scale.
The MT100’s transmitter is both full-featured and rugged to meet these operating challenges. It’s all stainless steel enclosure is NEMA4X/IP66 rated to ensure long service life in outdoor installations.
The MT100’s large colour touch-screen LCD readout provides comprehensive process information to users with both analogue and digital displays of flow rate, temperature and totalized flow, a user time-base selectable strip-chart of flow rate and sensor status diagnostics.
All MT100 Meters have been independently tested and verified to meet and comply with IEC safety directives for EMC and LVD, and carry the CE marking.
Optionally available for process installations with hazardous, potentially explosive gases and/or dust, MT100 meters can be ordered with ATEX approvals for Division II/Zone 2.
The highly repeatable and reliable MT100 Series Multipoint Mass Flow Meter are TÜV-certified as AMS compliant with EN15267-3 with QAL1 and EN14181, and also meets USA EPA CEMS 40 CFR 60 and 40 CFR 75 compliance.
For details contact AMS Instrumentation & Calibration Pty Ltd at www.ams-ic.com.au
