Airefrig Australia are now stocking Latent Fire Rated Twin Tube in every branch across Australia.

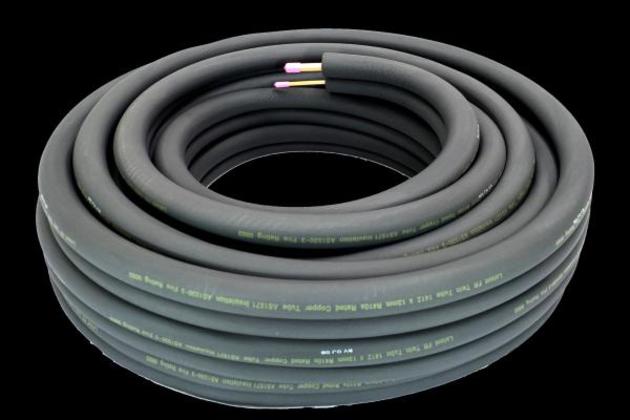

The Latent FR Twin Tube is available in 13mm and 19mm insulated 20 metre rolls, ideal for large scale Commercial Air conditioning installations.
The continuous 20 metre roll lengths reduces the need to seal insulation joints, apply glue or tape, saving time and money.
The fire rating of the insulation is 0003, tested to the Australian standard AS1530.3 - 1999. Fire Rating:
-
Ignitability Index 0 (0 - 20)
-
Spread of Flame 0 (0 - 10)
-
Heat Evolved Index 0 (0 - 10)
-
Smoke Developed Index 3 (0 - 10)
(To be read in conjunction with the Building Code of Australia)
The insulation is a closed cell elastomeric thermal Insulation E.P.D.M (Ethylene Propylene Diene Monomer). The closed cell structure provides many advantages over the most rigid insulations for cooling and heating lines such as:
-
Moisture and vapour resistance without using additional vapour barriers
-
Stable thermal conductivity (K. value) during service due to its dense surface skin and closed cell characteristics
-
Flexible - which makes insulation work easy and neat
-
Outstanding ultraviolet and weather resistance
All copper tube is rated for R410A and has an operating temperature range of between -57°C and +125°C.
For additional technical information or pricing contact your nearest Airefrig Australia branch on 1800 671 500.
