ebm‑papst has expanded its AxiEco axial fan range which was first introduced in 2020.
The series has now been expanded with the new AxiEco plug-in fans in sizes 450, 500 and 630, which are typical for heat pumps in detached or semi-detached homes.
Ice formation is a big topic in the world of heat pumps. It is a particular issue for evaporators when humidity settles on the heat exchanger as ice at cold ambient temperatures.
This reduces the air routes and the drag. The fans then have to offer significantly greater pressure reserves. This is where the new AxiEco Plug-in comes in.
Studies have shown that its flow technology reduces ice formation and its air flow only reduces very slightly as the pressure increases. This is also an advantage for heat pumps, which heat in winter and cool in summer, as the operating points then vary depending on operation.

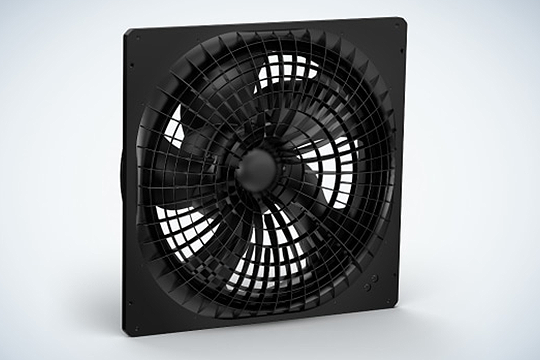

The new AxiEco Plug-in fans have now been equipped with an air inlet grille. This FlowGrid, which acts as a rectifier for air flow, drastically reduces noise-generating disturbances in the air flow.
This reduces the sound pressure over the entire frequency range, in particular the disruptive blade passing noise, i.e. unpleasant "humming" in the low frequency range. At the same time, the air inlet grille serves as a motor suspension and, if necessary, the device manufacturer can insert heating tape.
The new axial fan weighs 30 per cent less than the comparable HyBlade version with steel wall ring. This means that less weight has to be handled during the installation and the compact dimensions often make it possible to optimize the design of the end device.
The AxiEco Plug-in fans are supplied as a ready-to-install plug & play solution, including nozzle plate and FlowGrid.
