Belimo is a company that is not afraid to challenge traditional methods of hydronic system balancing and design by creating innovative products that reduce energy consumption and ensure the system is dynamically balanced.
It’s all about the “Delta T” of the end devices operating as designed which is what the Energy Valve is all about.

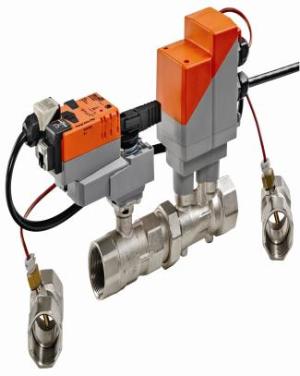

The Energy Valve is a pressure independent control valve which measures and manages coil energy by using an embedded electromagnetic or ultrasonic flow meter, along with supply and return water temperature sensors.
The Energy Valve also has the patented Power Control and Belimo Delta T Manager logics built-in to the smart actuator that monitors coil performance and optimises the available energy of the coil by maintaining the Delta T.
In addition to the standard analogue signal and feedback wiring, it can communicate its data to the Building Management System via BACnet MS/TP or BACnet IP.
The built-in web server collects up to 13 months of data that can be downloaded to external tools for further optimisation and analysis. Some of these features contribute to LEED points.
The Energy Valve is now available in nominal flows from 0.35 l/s to 45 l/s and diameters from DN15 to DN150.
It combines five functions of measuring, controlling, balancing, closing and monitoring energy into a simple installation-friendly device.
Its trend-setting technology ensures maximum comfort, provides transparency, enhances efficiency and lowers operating costs by maintaining the end device “Delta T”.
The Belimo Energy Valve can provide thermal heat transfer energy data allowing users the ability to see and document system performance during commissioning and over time.
Energy waste is identified and eliminated by modifying settings within the Energy Valve logic and by sharing the data with an Energy Management Control System.
As energy prices continue to increase, building owners are looking for ways to optimise their systems. Overflow from the coils cost the owners of the facility tens of thousands of dollars every year in wasted energy and wasted capacity. The
Belimo Energy Valve can reduce or eliminate the overflow through these systems. Pressure independent valves in each hydronic circuit will deliver comfort while optimising pump and plant operation.
The Energy Valve is a pressure and temperature independent device which dynamically balances regardless of the system pressure or temperature.
Tenant expansion and improvements within the facility can alter a traditionally balanced hydronic system and it is a constant challenge to ensure a system is tuned and operating at its optimum efficiency at all times.
Belimo’s Energy Valve can dynamically balance the desired load under all operating conditions and can provide true l/s flow readings for fast verification and BMS data logging via BACnet.
As well as reduce pump and chiller/boiler operating costs, the accurate coil performance data can be used to verify system performance during commissioning and act as a baseline standard over time.
Extensive feedback also provides the ability to implement advanced control strategies. For information email sales.pacific@belimo.ch or call 1300 464 424.
For product details visit www.energyvalve.com
