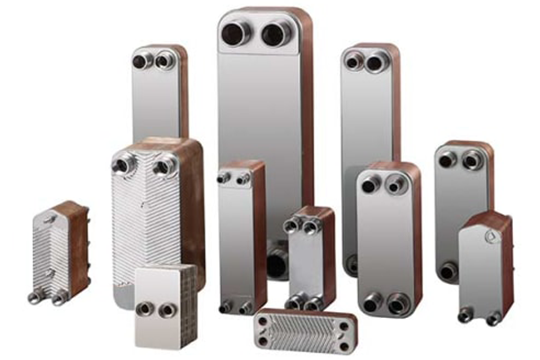

• Sanhua’s extensive range of BPHEs.
    Sanhua’s extensive range of BPHEs.
Close×

The most direct and effective way to save energy is to improve the efficiency of your systems.

Compared with other heat exchangers of the same purpose properly designed Brazed Plate Heat Exchangers (BPHEs) can provide higher heat transfer efficiency and lower pressure drops.

Sanhua BPHEs work with fluid groups 1 and group 2, including water, ethylene glycol solution, common HCFC, HFC, HC, as well as HFO refrigerants such as R410A, R32, R454B, R290, R134a, R404A, R507, R448A, R449A, R1234yf, R1234ze and R452A.

The designed pressure is up to 50 bar. The company’s full range of stainless steel BPHEs are suitable for many different applications including heat pumps, chillers and boilers.

Sanhua’s BPHEs include many different sizes and models; evaporators, condensers, de-superheaters, fluid to fluid exchangers and compact exchangers that are easy to install, gasket free, and with a fully hermetic design.

By introducing an asymmetric plate design, Sanhua have reduced the volume of the primary side to increase the evaporating temperature and heat transfer efficiency, while still keeping the pressure drop within an acceptable range.

Sanhua data shows a dT that is on average 1K lower and a pressure drop 25% lower than similar asymmetric design products.
